DualVee Original Guide Wheels

  • Linear guide wheel bearing for harsh and contaminated environments
  • Design with through bore for mounting on bushings or journals
  • Double row angular contact ball bearing arrangement
  • Sealed, shielded, seal/shield combination
  • Smooth, low friction motion for low noise
  • Extreme environment designs for high temp., low temp., washdown and vacuum
  • NEW Solid lubricant option for increased life and environmental protection
DualVee QuickShipSelect DualVee products are now available as part of the QuickShip Program. (Ships from our facility in ≤2 business days).



Chat with us to learn more about QuickShip.
SKU
DualVee-Original-Wheels
As low as $40.49
  •  Request a Quote
  •  Download CAD File

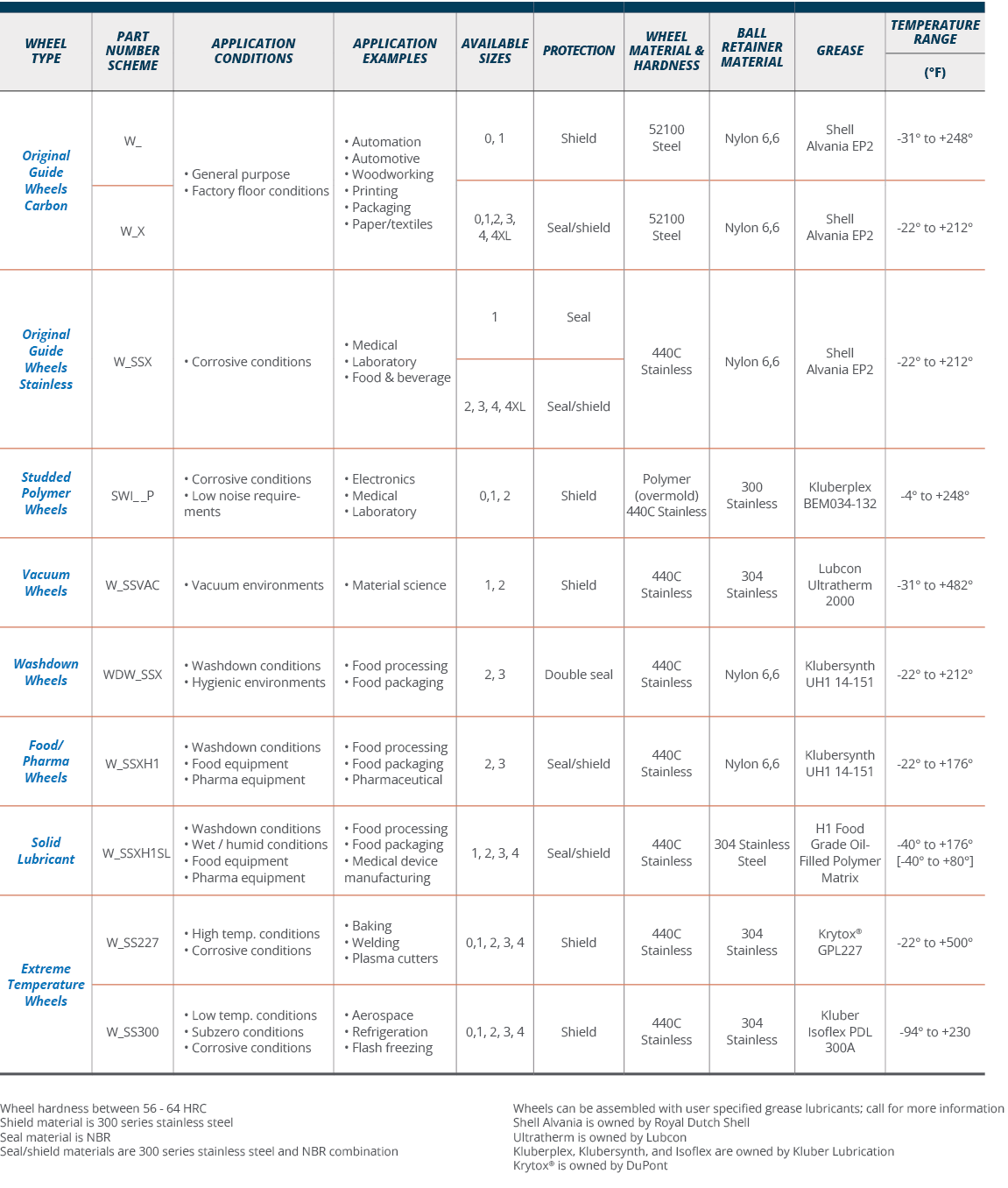

Product Details
  • Innovative double row angular contact ball bearing provides load carrying capacity in multiple directions
  • Cutting-edge technology designed to seal and shield internal rolling elements from external contaminants
  • Multiple sizing options to fit any industries load carrying requirements

DualVee® Original Guide Wheels are linear guide bearings which consist of both an external and internal 90-degree vee angle. The vee groove guide wheel is made with a double row angular contact ball bearing for excellent load capability and long service life. Vee bearing guide wheels are available in AISI 52100 carbon steel or AISI 440C stainless steel from stock. Options for protection include rubber seals, metal shields, or a seal/shield combination to meet specific application needs for operation in various types of contamination. Special DualVee guide wheel versions are available for cleanroom, debris-laden environments, low temperature and high temperature applications, high pressure fluid washdown, and vacuum applications. The guide wheels are internally lubricated for life, but customer specific lubricants can also be used upon request. These linear guide bearings are ideal for very long length applications in harsh, debris-laden environments and they provide very high load capacities. Use them to create very smooth guided motion that is quiet and durable.



DualVee® Solid Lubricant Guide Wheels

DualVee® Solid Lubricant is designed to be Bishop-Wisecarver's longest-lasting product yet, often capable of 2.5x or more cycles than comparable grease-filled wheels. Instead of using a grease to retain the oil for lubricating the internal bearings, this wheel uses an oil-impregnated solid polymer matrix. Whereas dust, debris, and wear particles can get trapped by grease and degrade the effectiveness of the oil, the solid polymer matrix keeps particles out. It also resists moisture and chemicals better, retains oil much better (even under washdown conditions), and holds up to 30% more oil compared to grease. Made from AISI 440C stainless steel with the latest seal shield technology for exceptional protection of the wheels inner components. Polymer matrix provides enhanced resistance to debris and wear particles, moisture, humidity, and chemicals (including acids, lyes, and solvents). Oil is H1 food grade, suitable for incidental food contact and use in food processing, food packaging, pharmaceutical applications, and more.
Food Grade Applications
  • Food Processing
  • Food Packaging
  • Pharmaceutical Processing
  • Pharmaceutical Packaging
  • Agriculture Harvesting & Processing
Critical Applications
Where failure or downtime is unacceptable and/or extremely costly
  • High Throughput Manufacturing and Automation
  • Defense
  • Aerospace
  • Construction
Applications involving washdowns, moisture, or humidity
DualVee Solid Lubricant Wheel Cross Section

DualVee® Food & Pharmaceutical Guide Wheels

DualVee® Food and Pharmaceutical grade guide wheel bearings were designed for use where contact with food or consumables is technically unavoidable. Made from AISI 440C stainless steel with the latest seal shield technology for exceptional protection of the wheels inner components. Capable of the high load capacities and the reliability that have become synonymous with the DualVee name, the Food and Pharmaceutical wheels utilize Klubersynth UH1 14-151 lubricant that was developed specifically for the food processing and pharmaceutical industries, is ISO 21469 certified and provides superior anti-wear properties, water resistance and corrosion resistance.
Food & Beverage Applications
  • Food Processing Machinery
  • Food Packaging Machinery
  • Pharmaceutical Equipment
  • Cosmetic Production Machines
Other Applications
  • Packaging Equipment
  • Form Fill Seal Machinery
  • Agriculture Harvesting & Processing
DualVee Food Pharma Wheel

DualVee® Vacuum Wheels

DualVee® Vacuum Wheels are linear guide bearings with precision ground 90-degree surfaces for linear and rotary motion applications in vacuum environments and testing chambers. Made of vacuum compatible AISI440C and 304 stainless steel and grease, these guide wheels are capable of ultra-high vacuum down to 10-9 mbar. Mount on AISI303 DualVee® bushings and run on 90-degree AISI 420 track in single piece lengths up to 20 feet and available in two sizes with load capacities up to 1855N radially, and 440N axially, they are ideal for guided motion in challenging environments. The grease is Lubcon Ultratherm 2000 ultra high vacuum grease.
High Technology Applications
  • Research & Development
  • Materials Science
  • Chemical Vapor & Plasma Deposition
  • Semiconductor & Electronics Fabrication
  • High Attitude Testing and Simulation
  • Space Testing and Simulation
Other Applications
  • Life Science and Pharmaceutical
  • Filling, Encapsulating, Dosing
  • Package Sealing & Leak Testing
  • Degassing
Vacuum Wheel

DualVee® Washdown Wheels


DualVee® Washdown Wheels are linear guide bearings designed for long service life in harsh high pressure washdown environments where processing machinery must be cleaned and sanitized. They are made form AISI440C stainless steel and feature a patented double seal design to keep fluids out of the internal area. The inner seal retains the bearing grease, and the outer seal is flexible to protect the bearing during high pressure washing. After washing the outer seal will relax to allow any fluids to drain. This unique design keeps bearing grease inside the wheel for a longer lifespan that traditional seal technology. The grease is Klubersynth UH1 14-151 for food safe compatibility where machine contact with food is unavoidable and is ISO21469 certified.
Washdown & Hygienic Applications
  • Chicken Production Machinery
  • Food Processing Equipment
  • Beverage Packaging
  • Agriculture Processing Machinery
  • Packaging Equipment
Other Applications
  • Hygienic Requirements
  • Caustic Washdown
  • High Pressure Cleaning
  • Spraying, Washing, Cleaning
DualVee Washdown Linear Guide Wheel

Please call for specific lead-times, or to expedite your order. See additional product lead time information.

DualVee TCO Best Reliability

GENUINE DUALVEE WHEELS & TRACK OUTPERFORM COPY PRODUCTS

Best in Class Reliability and Less Maintenance = Lower TCO

If you are a design engineer integrating vee guide wheel and track into your machine, your top choice is BishopWisecarver’s DualVee Motion Technology®, based on DualVee® guide wheels and track. “Copy” products fail to perform to the same levels as DualVee®, which means these imitator products ultimately increase total cost of ownership (TCO) for your customers in several ways. In addition, using copy products with the expectation of peak performance can, in some instances, pose serious threat of harm to human life and machinery.

This technical white paper presents the results from extensive testing that quantifies the superior performance and reliability of Bishop-Wisecarver’s DualVee Motion Technology®.

PRODUCT USED: DualVee Wheels and Track

DualVee Medical Immunoanalyzer

BENCHTOP IMMUNOANALYZER

Providing Smooth Operation in a Compact Profile for Medical Equipment

THE CHALLENGE:

A manufacturer of desktop analyzers required a compact and reliable method of positioning and scanning the testing kit trays. The trays extend to provide easy access for the user to add samples to the reagent kits, then get drawn into the analyzer during operation. The reagent kits are scanned using a moving scanner head, which also required guided motion.

INDUSTRY: Medical

PRODUCT USED: DualVee Wheels and Track

DualVee Agriculture Food Cutting

MELON CUTTING AUTOMATION

Guide Wheels and Track for Food Grade and Washdown Environments

THE CHALLENGE:

Our customer required a solution to streamline and automate their melon cutting, and opted to use a reciprocating guillotine. The blade had to travel linearly a total of 180,000 inches per day in high-cycle operation. Any components used to guide this motion must be food grade, non-corroding, and suitable for a washdown environment.

INDUSTRY: Food and Agriculture - Cutting

PRODUCT USED: Stainless Steel DualVee Wheels and Track, Washdown Series Guide Wheel

DualVee Overview

Motion Technology

V Bearing Guide Wheels

A Robotics Application Story

DualVee & GV3

Welding Application Story

Are DualVee wheels available with a special grease?

Yes, we can fill the wheels with customer-specified or customer-supplied lubricants.

Can DualVee wheels be used with Hepco track?

In most cases, no. Almost all Hepco track uses a 70° vee, while DualVee wheels are a 90° vee. We do not recommend using 90 degree wheels on 70 degree track nor vice versa, because the contact surface between the wheel and track is very small. The smaller contact surface will accelerate wear and decrease system life.

Will DualVee wheels run on surfaces other than DualVee track?

DualVee wheels can run on any 90° surface, such as a piece of angle iron. However, note that wear characteristics will be different, and life might be compromised.

Can larger wheels run on smaller track?

In some cases, yes. There are instances where the larger wheels will not work. Consult the factory for details. Can smaller wheels run on larger track? Yes. The larger track may be used to provide more support for the machine.

Is double edge track available in other than size 0?

DualVee double edge track is available only is size 0. Hepco's GV3 line offers various double edge track sizes.

Does DualVee track need to be lubricated?

It is not necessary to lubricate the track in certain cases (light loads, low duty cycle), but a significant improvement in track life will result from lubricating the track with oil.

Where can I find information on mounting DualVee track?

Click here for mounting instructions. What is the maximum recommended speed for DualVee guide wheel technology? Speeds up to 5.5 meters per second.

Can guide wheels be used in high temperature applications?

Specially designed guide wheels using all stainless steel components, heat stabilized material, with special grease, can operate up to 500oF.

What is the temperature range of the standard carbon wheels?

The temperature range of standard carbon steel wheels is limited by the service temperature range of the elastomeric seal and grease. For standard grease, the service temperature range would be from -35oC to +100oC.

Is the grease used in polymer wheels the same as carbon wheels?

Yes. The same standard grease is used for both polymer and carbon wheels.

How much quieter are polymer wheels than carbon wheels?

Unknown. No quantitative data is available at this time.

Should the mounting threads for the eccentric wheels be secured with Loctite?

Yes. Use red Loctite if there is no future need to adjust the preload, and blue Loctite if future adjustments may be needed. However, when applying Loctite compounds, be sure to adjust and set the wheels within a short time after applying the compound.

Where can I obtain specifications for tightening the eccentrics?

Click here for instructions for tightening eccentrics. Note that the process is based on feel, rather than any quantitative tightening load.

What is the coefficient of friction for guide wheel technology?

Between 0.005–0.02, when operated on DualVee track.

What are the differences between the Studded Guide Wheels Assembly (SWA) and the Studded Integral (SWI) wheel?

The SWA wheel is an assembly where the stud is swaged onto the wheel. SWI wheels sizes 0 and 1 are swaged assemblies, sizes 2+ are fully integrated assemblies (stud is integrated with the inner race). The stud geometry and materials are also different between the SWA and SWI studded wheels. SWI concentric and eccentric studs feature different geometry to eliminate the wheels from being misassembled in the wrong location. SWI wheels are available up to size 4. SWA wheels are available up to size 2. DualVee wheels have a 90° vee while Hepco GV3 wheels have a 70° vee.

Are there benefits to the different vee designs?

Theoretical benefit #1: When the wheels are loaded, the highest stress occurs at the apex of the inner vee. The 90° vee in DualVee wheels creates a lower stress concentration at the apex than the 70° vee (assuming identical apex relief radius) and also results in less of a resultant "outward wedging force" on the wheel.

Why is the stainless steel track magnetic, and why does it rust?

DualVee track is made from type 420 martensitic stainless steel. This alloy can be heat treated to produce a hardened track surface, which provides good wear resistance in service. Martensitic alloys are magnetic in all heat treatment conditions, which relates to the ratio of iron/chromium contents within the chemical compositions of the alloys.It has been observed that stainless steel track can rust in service. However, all grades of stainless steels can rust in certain environments, but some are more corrosion resistant than others. For example, austenitic stainless steels (300 series) are accepted as having the best corrosion resistance of all stainless steel alloys. The lower corrosion resistance of type 420 can be attributed to a lower chromium content than 300 series stainless steels. It is important to note that while 300 series stainless steels are the most corrosion resistant alloys, they are not hardenable by heat treatment. This inability to harden means that 300 series stainless steels are not as suitable for track applications and will not perform as well as 420 series in abrasive wear environments.

What do the terms 'axial load' and 'radial load' refer to with regard to a bearing?

Axial load is any load that is parallel to the axis of rotation of the bearing.
Radial load is any load that is perpendicular to the axis of rotation.

What does the term 'Double Row Angular Contact' refer to with regards to bearings?

"Double row angular contact" refer to the two rows of ball bearlings loaded at a particular angle. These bearings offer high load carrying capacity in both axial and radial directions. These high load capabilities result in long service life.

DualVee Motion Technology is designed for dirt and extreme environments. The patented 90º DualVee guide wheel design creates a velocity gradient because the circumference of the wheel is greater at the major diameter than the minor diameter. This velocity gradient causes a constant sweeping action, thus cleaning debris from the track.

How do I calculate forces and life for DualVee guide wheels?

Step 1: Calculate loads on each bearing Given below are force equations for some common four-wheel carriage assembly configurations, in which two wheels absorb the load at both points 1 and 2, divide the calculated load by 2 to obtain the load on each wheel.

Scenario 1


Scenario 2





Scenario 3

*Note: Since carriages use four wheels,
two wheels absorb the load at both
points 1 and 2. Divide the calculated
load by 2 to obtain the load on each wheel.



*Note: Since carriages use four wheels, two wheels absorb the load at both points 1 and 2. Divide the calculated load by 2 to obtain the load on each wheel. Example: Scenario 3 L = 200 lbs X = 15 inches Y = 5 inches

Step 2: Calculate the load factor for the most heavily loaded bearing Using the above example with size W4X guide wheel, FA(max) and FR(max) from the DualVee load rating chart.

Step 3: Calculate life estimate For life constants, AF assumed at 1
