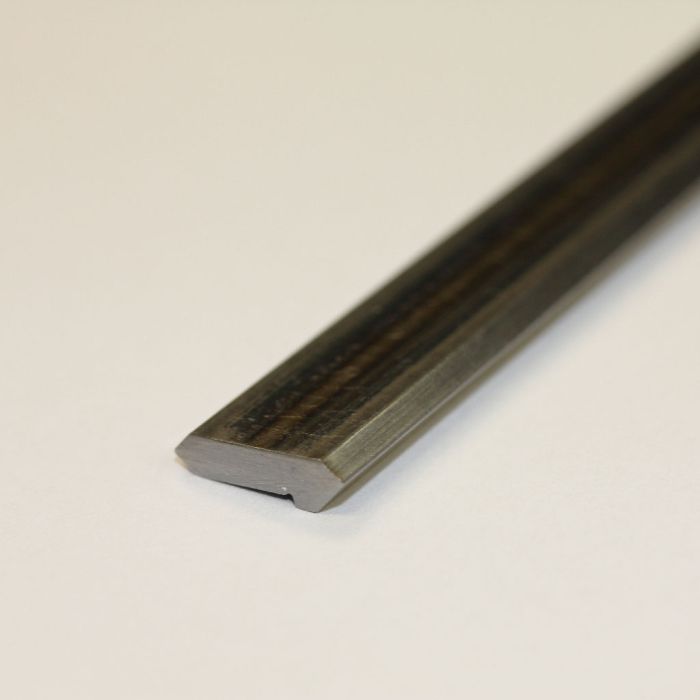

MinVee Double Edge Track, Size 0, Carbon Steel, Soft, 7' Long

• Linear guide track with double 90° vee surfaces
• Drill your own mounting holes
• AISI 1045 carbon steel, soft with hardness of HRc 22-25
• Mounting shoulder for accurate positioning of vee ways
• Provided polished and oiled
SKU
TDS0-7
$173.86
  •  Request a Quote
  •  Download CAD File
  •  Download Catalog File
  •  Application Stories
  •  Questions
Details
MinVee double edge linear guide track has a pair of opposing 90° vee way surfaces for use with MinVee guide wheels. Material is unhardened and remains soft in all areas allowing for drilling or other machining. Length is 7 feet long without holes. Provided polished and oiled. Available finish operations include black oxide, thin dense chrome, or nickel plating and non-standard hole patterns or lengths can be accommodated and are quoted upon request.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.



Available made-to-order with user specified length, hole spacing, and machining.
Download cut sheet to specify dimensions.



More Information
More Information
Description MinVee double edge linear guide track has a pair of opposing 90° vee way surfaces for use with MinVee guide wheels. Material is unhardened and remains soft in all areas allowing for drilling or other machining. Length is 7 feet long without holes. Provided polished and oiled. Available finish operations include black oxide, thin dense chrome, or nickel plating and non-standard hole patterns or lengths can be accommodated and are quoted upon request.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.



Available made-to-order with user specified length, hole spacing, and machining.
Download cut sheet to specify dimensions.
