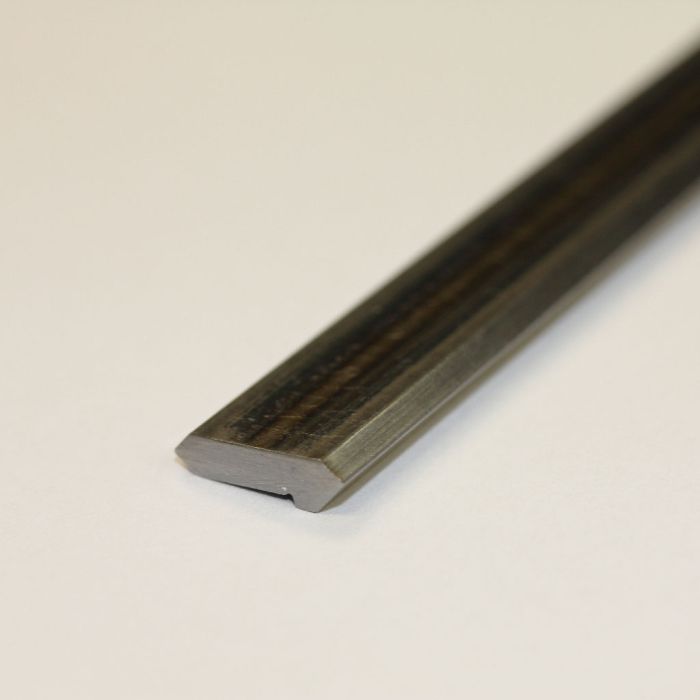

MinVee Double Edge Track, Size 0, Carbon Steel, Hardened, 1' Long

• Linear guide track with double 90° vee surfaces
• Drill your own mounting holes
• AISI 1045 carbon steel, hardened to HRc 53 minimum
• Mounting shoulder for accurate positioning of vee ways
• Provided polished and oiled
SKU
TD0-1
$30.63
  •  Request a Quote
  •  Download CAD File
  •  Download Catalog File
  •  Application Stories
  •  Questions
Details
MinVee double edge linear guide track has a pair of opposing 90° vee way surfaces for use with MinVee guide wheels. Vee surfaces are induction hardened for durability but material remains soft below the mounting shoulder, allowing for drilling or other machining. Length is 1 foot long without holes. Provided polished and oiled. Available finish operations include black oxide, thin dense chrome, or nickel plating and non-standard hole patterns or lengths can be accommodated and are quoted upon request.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.



Available made-to-order with user specified length, hole spacing, and machining.
Download cut sheet to specify dimensions.



More Information
More Information
Description MinVee double edge linear guide track has a pair of opposing 90° vee way surfaces for use with MinVee guide wheels. Vee surfaces are induction hardened for durability but material remains soft below the mounting shoulder, allowing for drilling or other machining. Length is 1 foot long without holes. Provided polished and oiled. Available finish operations include black oxide, thin dense chrome, or nickel plating and non-standard hole patterns or lengths can be accommodated and are quoted upon request.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.



Available made-to-order with user specified length, hole spacing, and machining.
Download cut sheet to specify dimensions.
