DualVee®

UPDATE!

New Product - Dualvee Vacuum Wheels


See the 2014 DualVee Catalog for product line updates, new product information, and installation information.



[ DOWNLOAD HERE ]



Our DualVee product line offers you vee guide wheel components and assemblies that are:

  • Easy to use
  • Simple to install
  • Ideal for a wide array of applications
  • Quiet
  • Ideal in long length applications
  • Tolerant of harsh environments



DualVee provides users with many vee guide wheel options:

  • Original vee bearing guide wheels
    (High temp and low temperature versions)
  • Swaged vee bearing guide wheels
  • Patented washdown wheels
  • Polymer overmolded bearing guide wheels


Linear guide wheels run on either single-edge track or double-edge track. Wheels are mounted using journals or bushings.

Functionality and life of your DualVee system can be increased by incorporating wheel covers, lubricators, track plate assemblies, and wheel plate assemblies.


Linear Guide Wheel Overview Debris is No Match for DualVee Guide Wheels




Download Literature
Complete Line DualVee Catalog
DualVee Componentes y guías lineales - en español

Washdown Wheels Flier

DualVee Wheel Quick Comparison
Mounting DualVee Track

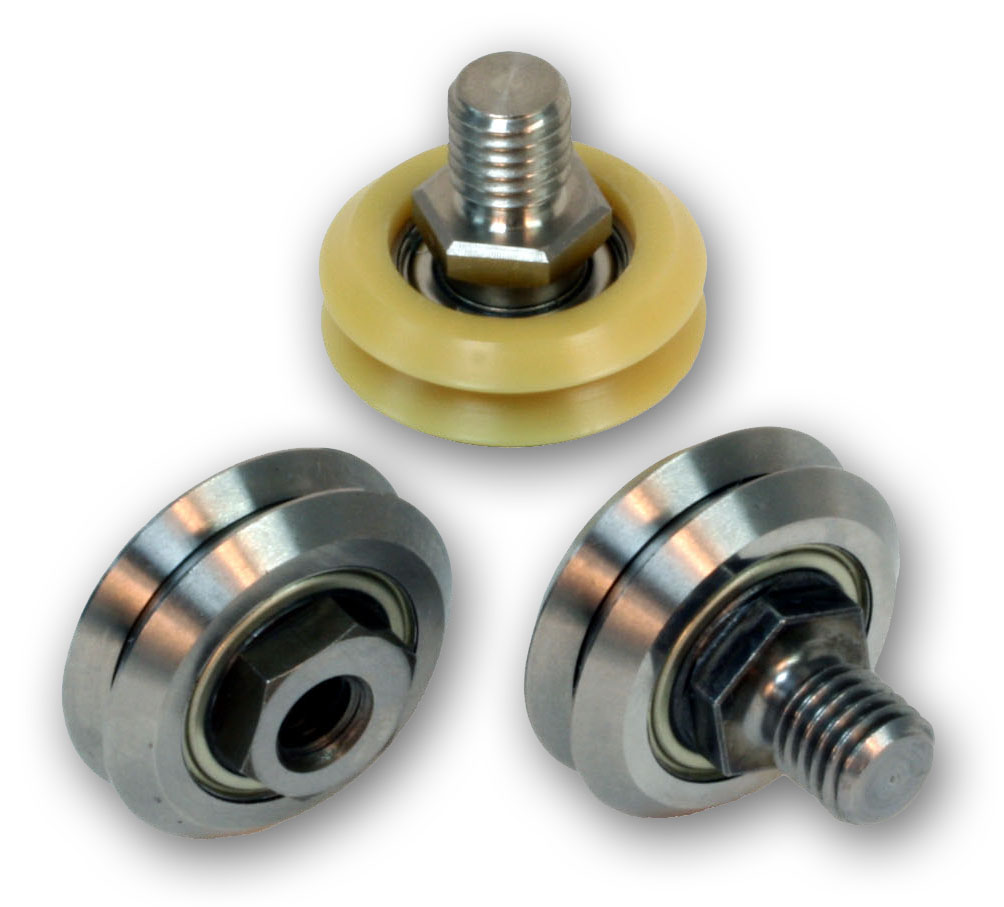

Original Linear Guide Wheels

DualVee linear guide wheels consist of both an external and internal 90 degree vee angle. The vee groove guide wheel is made with a double row angular contact bearing for excellent load capability and long life. Vee bearing guide wheels are available in 52100 steel or 440C stainless steel from stock. Other options include seals and shields to meet specific application needs. Special DualVee guide wheels are available for cleanroom, debris-laden, low temperature and high temperature applications. Customer specific lubricants can also be used upon request.

Talk to an applications engineer today to learn more about our swaged wheel options.

Service Temperature Comparison:

High temperature wheels: -22 to +500°F (-30 to +260°C)
Low temperature wheels: -94 to +230°F (-70 to +110°C)
Original DualVee wheels, seal (suffix X): -31 to +248°F (-35 to +120°C)
Original DualVee wheels. shield (no suffix): -22 to +212°F (-30 to +100°C)

Washdown V Groove Guide Wheels

Washdown wheels' patented design features all stainless steel construction, FDA approved grease, AISI type 440C stainless steel balls and races, and are both sealed and shielded for added protection from liquids and debris.  This unique design extends life in aggressive environments - at least 3x.

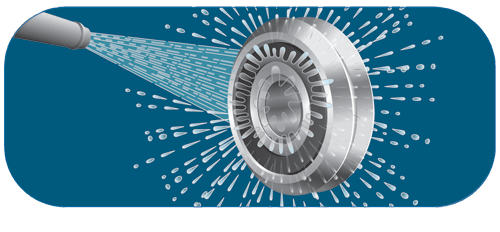

Washdown Wheel

How It Works: The overmolded metallic shield acts as a momentary seal when subjected to a stream of high velocity washdown fluid. The fluid velocity causes the rubberized shield to deflect and conform to the metallic surface of the wheel, sealing against the ingress of liquids. The inner seal provides the principal line of defense, ensuring that external fluids are kept out of the wheel while retaining the internal lubrication grease; both important factors affecting the life of the wheel. Once the stream is directed away from the wheel, the deflected shield returns to its original position, allowing any residual fluid that entered the zone between the shield and seal to drain out or be spun out by centrifugal force.



 Washdown Environment Demonstration
 Washdown Environment Animation



Single Edge Track

Single edge track is available in AISI 1045 carbon steel and 420 stainless steel from stock. At the Vee edge, a mounting shoulder is provided for quick reference during assembly. Track is offered with or without hardened Vee surfaces. Hardened track comes in lengths of 20 feet, and can be easily butt-jointed for longer length applications. Non-hardened track comes in lengths up to 22 feet, and also may be butt-jointed for longer lengths. Additionally, all single edge tracks may be purchased with or without drilled holes for mounting.

Double Edge Track

Double edge track is made from AISA 1045 carbon steel, with two hardened or non-hardened Vee edges. One Vee edge also has a mounting shoulder like the single edge track. Hardened track comes in lengths of 20 feet, and can be easily butt-jointed for longer length applications. Non-hardened track comes in lengths up to 22 feet, and also may be butt-jointed for longer lengths. All double edge track may be purchased with or without drilled holes for mounting.

Track Plate AssembliesTrack Plate Assembly

Track plate assemblies combine your choice of single edge DualVee track with an easy to mount aluminum base. The aluminum base is made from high precision aluminum alloy with an anodized coating. Track plate assemblies are easily butt-jointed to provide infinite lengths.

Wheel Plate Assemblies

There are two choices for wheel plate assemblies, wiper wheel plates and basic wheel plates. Wiper wheel plates are available with your choice of DualVee v bearing guide wheels and provide the lowest height solution. Basic wheel plates are the more economical choice and are supplied with your choice of DualVee v bearing integral wheels, and either lubricators or wheel covers. Both the wiper wheel plate and the basic wheel plate are intended to run on track plate assemblies.

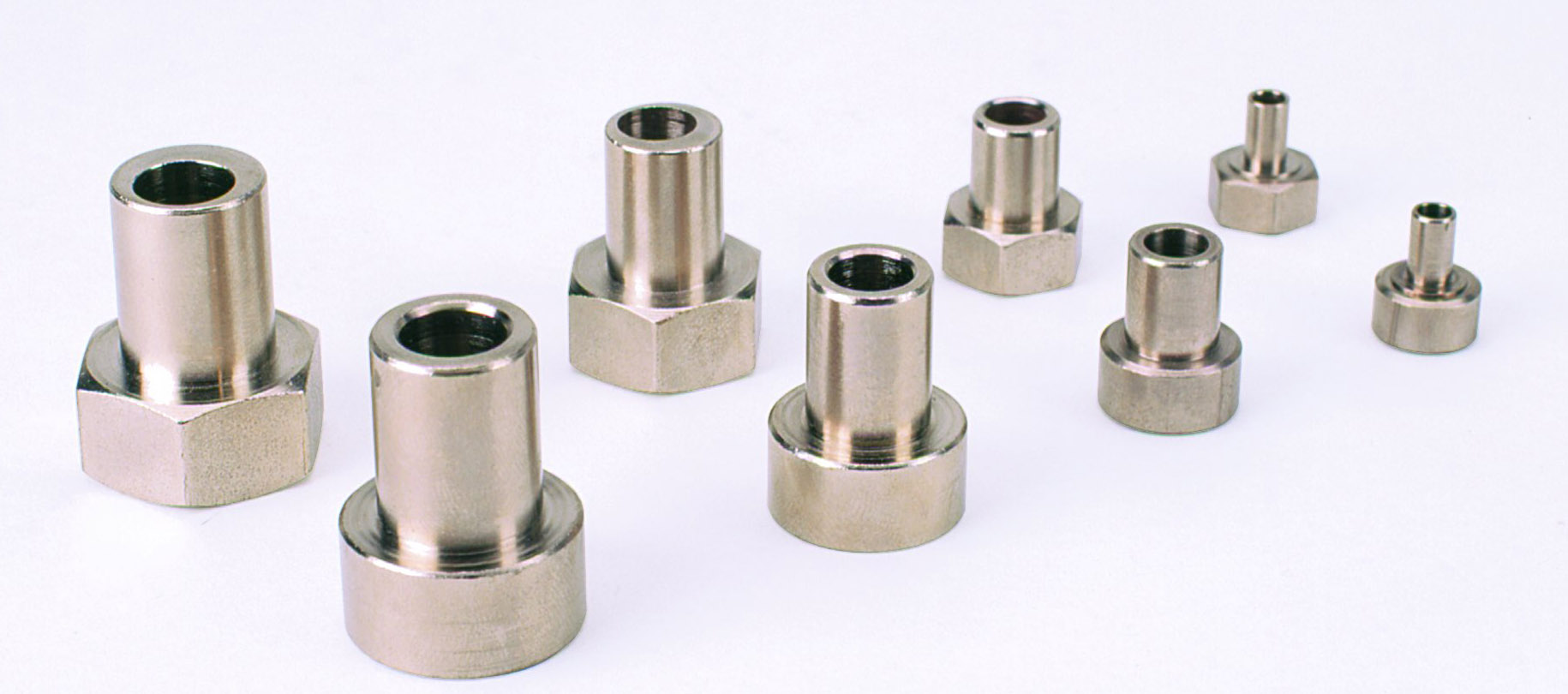

Journals and Bushings

Journals and bushings provide time proven methods to affix DualVee v bearing guide wheels. Eccentric and concentric versions of journals and bushings provide optimum adjustment for each individual application. Bushings are available in standard height or low profile versions, as well as metric and inch versions.

Wheel CoversGuide Wheel Covers

Wheel covers provide lubrication to the Vee interface between the track and the v bearing guide wheel to help keep your DualVee system running at its best. The guide wheel is protected from direct contact with particulate or spray. Wheel covers come in a variety of sizes and heights to accommodate various bushings and integral guide wheels.

LubricatorsGuide Wheel Lubricators

Lubricators, like wheel covers, provide lubrication to the Vee interface between the track and the v bearing guide wheel to help keep your DualVee system running at its best. Lubricators come in a variety of sizes and heights to accommodate various bushings, journals, and integral guide wheels.


For help on how to use this catalog, please click here. To view the entire digital catalog available online, click here.

To turn a page, click on the bottom corners. For options,click on the top menu tabs available on the left.

Page looks blank? Click on the link below to view.



[ Enlarge this document in a new window ]

New Product - Dualvee® Vacuum Wheels

Designed Specifically for Use in Vacuum Environments

DualVee® Vacuum Wheels are linear guide bearings with precision ground 90-degree surfaces for linear and rotary motion applications in vacuum environments and testing chambers.  Made of vacuum compatible AISI440C and 304 stainless steel and grease, these guide wheels are capable of ultra high vacuum down to 10-9 mbar.  Mount on AISI303 DualVee® bushings and run on 90-degree AISI 420 track in single piece lengths up to 20 feet and available in two sizes with load capacities up to 1855N radially, and 440N axially, they are ideal for guided motion in challenging environments.

High Technology Applications

  • Research & DevelopementDualvee Vaccum Wheels
  • Materials Science
  • Chemial Vapor & Plasma Deposition
  • Semiconductor & Electronics Fabrication
  • High Attitude Testing and Simulation
  • Space Testing and Simulation

Other Applications

  • Life Science and Pharmaceutical
  • Filling, Encapsulating, Dosing
  • Package Sealing & Leak Testing
  • Degassing



Design your next motion application with dualVee Vacuum Wheels, wheel mounting, bushings and guide track.

Download our Datasheet and Frequently Asked Questions
