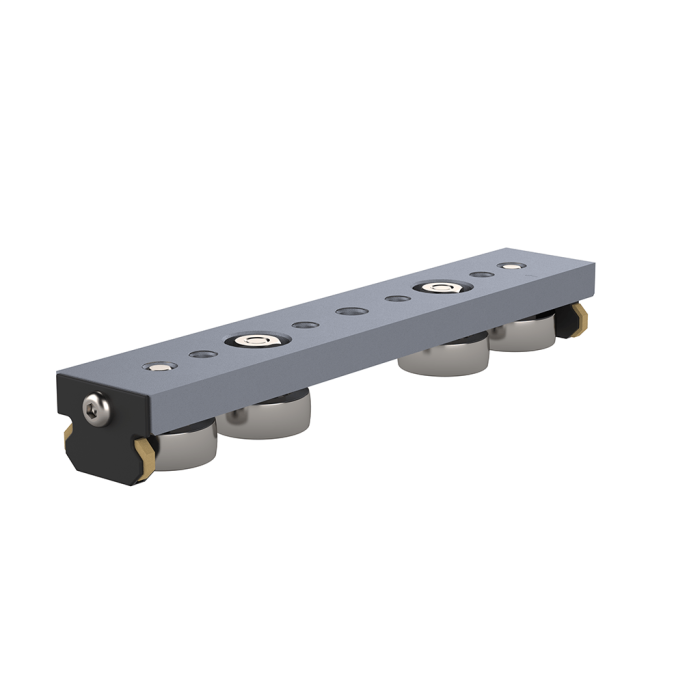

UtiliTrak SW Series Wheel Plate Assembly, Size 1, 4-Wheel, Crown Roller, Carbon, Shielded

• Assembly with guide wheels and lubricators

• Threaded hole pattern for attachment points

• Precision machined from 6061-T6 aluminum

• Molded end caps with wiping lubricator felts

• Ground steel wheels for heavy loads

• Optional position locking brake

Availability: In stock

SKU: UT1WPAR-4A

$240.35

Additional Information

Description UtiliTrak SW series wheel plate assemblies are compact linear guide bearing blocks with pre-installed steel guide wheels and molded track wiping lubricators. Compact design with 4 each crown roller guide wheels including 2 fixed location concentric wheels, and 2 adjustable location eccentric wheel for field adjustable fit-up to linear guide track. Precision ground carbon steel wheels with shields are ideal for general purpose applications with large debris contamination and heavy loads. Crown rollers with a curved outer surface can accomodate missalignment of the linear guide while providing smooth and quiet operation. Internally lubricated with general purpose grease.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.

Application Stories
Questions
Catalog URL http://www2.bwc.com/UtiliTrak-Catalog
CAD File URL /cadenas/index.html?prjNode=utili_trak/sw_series&prjName=sw_4_and_5wheel_plate_assy_asmtab.prj
