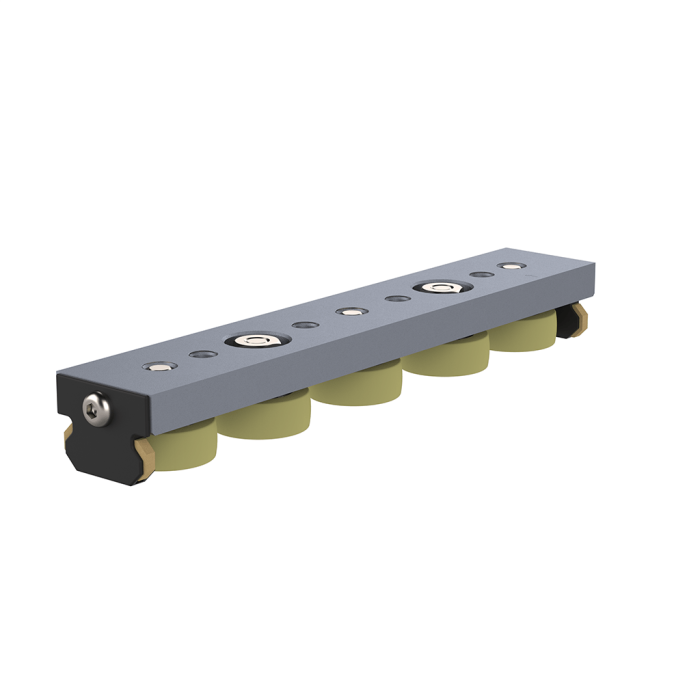

UtiliTrak PW Series Wheel Plate Assembly, Size 1, 5-Wheel, Crown Roller, Polymer

• Assembly with guide wheels and lubricators

• Threaded hole pattern for attachment points

• Precision machined from 6061-T6 aluminum

• Molded end caps with wiping lubricator felts

• Polymer wheels for light duty loads

• Optional position locking brake

Availability: In stock

SKU: UT1WPAPR-5A

$218.53

Additional Information

Description UtiliTrak PW series wheel plate assemblies are compact linear guide bearing blocks with pre-installed polymer guide wheels and molded track wiping lubricators. Compact design with 5 each crown roller wheels including 3 fixed location concentric wheels, and 2 adjustable location eccentric wheel for field adjustable fit-up to linear guide track. Polymer overmolded stainless steel wheels are ideal for light load applications in corrosive environments. Crown rollers accomodate misalignment of mounted track surfaces. Provides ultra quiet operation.



Please call for specific lead-times, or to expedite your order. See additional product lead time information.
